Horse series Line-interactive UPS (0.5~10KVA)

Horse series Line-interactive UPS (0.5~10KVA)

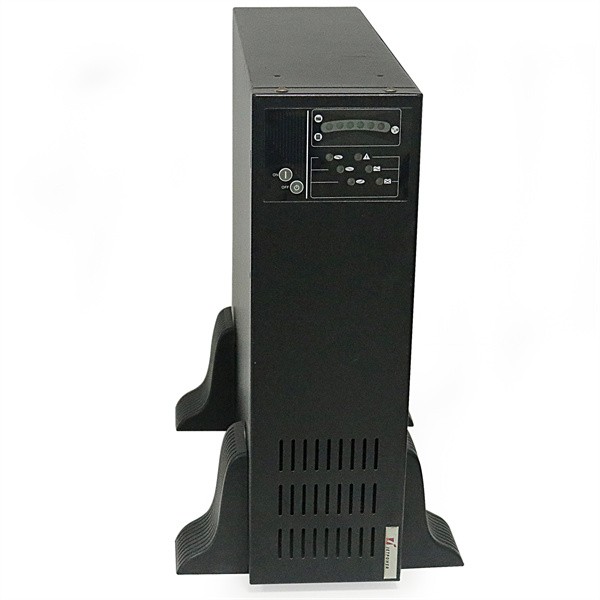

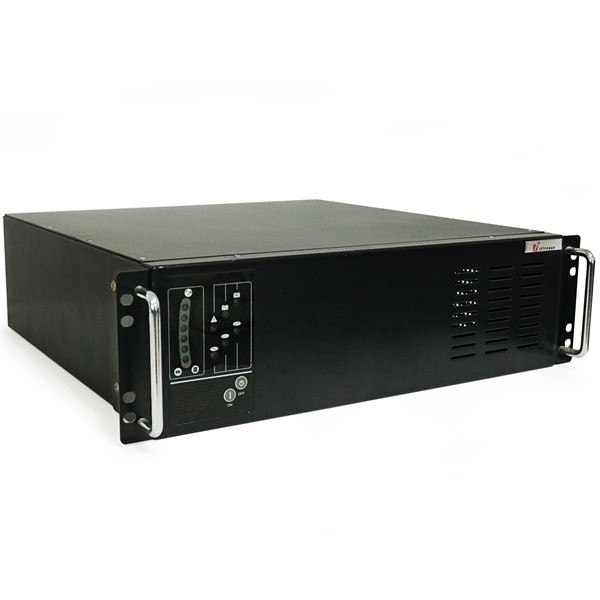

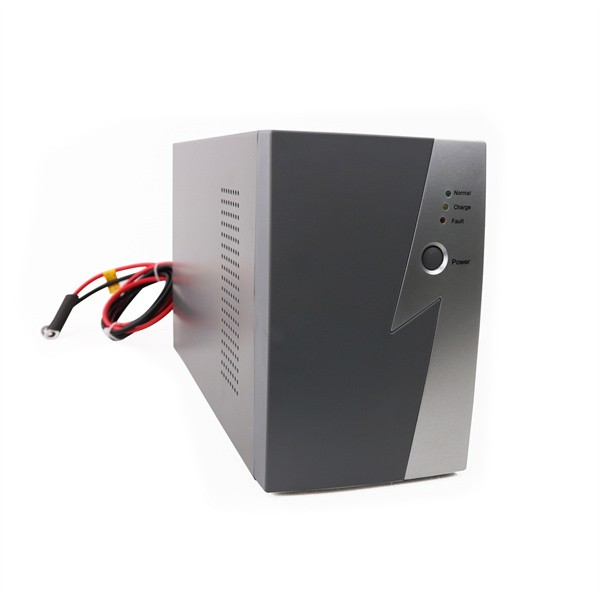

Horse series Line-interactive UPS (0.5~10KVA) is sine wave output, low frequency with isolation transformer, rack mount or tower mount.

Horse series 0.5 ~10KVA, Line-interactive, True sine wave

H-0.5K&1K 内页.jpg

HorseSeries use line-interactive technology to fully protect your data by supplying reliable AC power and scalable runtime for voice and data networks and servers even in harsh power environments. With built-in Boost and Buck function, the PNNT series can operate under a wide AC input voltage while keeping steady output voltage. The wide AC input voltage avoids frequent transfers to battery mode, preserve maximum backup time for extreme power events and also increase battery life time.

The RS232 or USB connectivity with power monitoring and management software provides useful power management functions such as event logging and unattended file saving shutdown.

High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems.

Features：

l Line-interactive, true sine wave output

l DC cold startup function

l Built-in microprocessor control

l Boost and trim automatic voltage regulation (AVR)

Gives higher application availability for correcting low and high voltage conditions without using battery

l Standard and extended Runtime options available

Allows additional run time to be quickly added as needed

l LED status indicators

Enables quick understanding and response to visual indicators showing UPS status

l Safety agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. CE approval and FCC class B

l Serial Connectivity

Provides management of the UPS via RS-232 (USB Optional)

Datasheet

Model

0.5KVA (L)

1KVA (L)

1.5KVA (L)

2KVA (L)

3KVA (L)

4KVA (L)

6KVA (L)

7.5KVA (L)

10KVA L

Capacity (KW)

0.3

0.7

1.05

1.4

2.1

2.8

4.2

5.2

Input

Nominal voltage

115Vac or 230Vac, single phase

230Vac, single phase

Voltage

85-135Vac or 165～275Vac

165～275Vac

Frequency

45~65Hz (automatic sense)

Output

Nominal voltage

115Vac or 230Vac, single phase

230Vac, single phase

Voltage regulation

115Vac±2% or 230Vac±2% (battery mode)

230Vac±2% (battery mode)

Frequency regulation

50/60Hz ±2% (battery mode)

THD

<3%

Power factor

0.7 lagging to 1

Waveform

True sine wave

Transfer Time(ms)

≤4ms

Overload capacity

110%~130% for 30second then shutdown; >130% immediate shutdown (battery mode)

Indicator

9LEDs (AC input/output voltage, battery capacity, operation status)

Protection

Output short circuit, over voltage, under voltage, AC utility lack, battery voltage low, over temperature, over load,

Communication

USB or RS-232

Battery

Type

VRLA

Voltage

12VDC

24VDC

36VDC

48VDC

Safety & EMC

CE, TUV, FCC

Ambient

Temperature

0~40℃

Humidity

0~95%

Altitude

3000m

Physical

Size (W×D×H, mm)

405X228X175

415X258X180

475X200X270

535X280X420

530*264*592

Weight (kg)

(6)

11.5

(7.5)

16.5 (11.7)

(20)

(25)

(30)

(35)

(50)

Research and development

Powtech is one of leading manfuacturer of AC/DC switching power supply (recitfier system), DC/AC power inverter, AC/AC UPS (Uninterrupted Power Supply) in China. Since our establishment in 1994, we are dedicated to serve our partner with whole solution of power system, professional technical solution , quality product, FAT test, factory product training, on-site training and many value-added services. we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold world widely, including Europe, South America, Africa, Middle East, Asia .

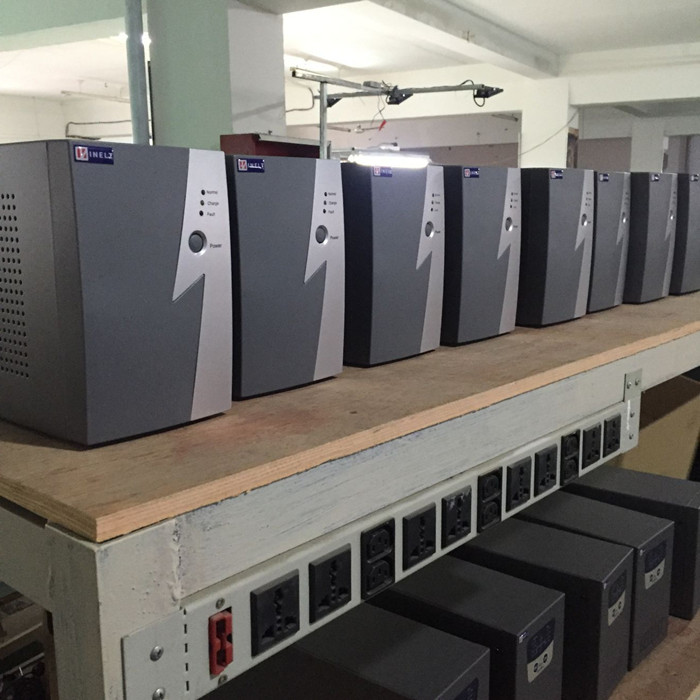

Workshop&Inspection
