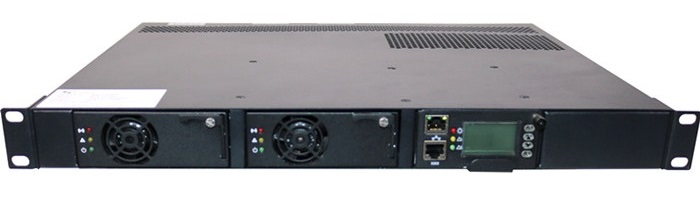

48V/100A rectifier system (1U rack)

System model: SPS100-48
System capacity: 48V/60A (6000W)
System input voltage: 90~300VAC, 1phase/3wire
System output voltage: 48VDC
System sizes: 482*330*44mm

EMAIL

48V/100A rectifier system (1U rack)

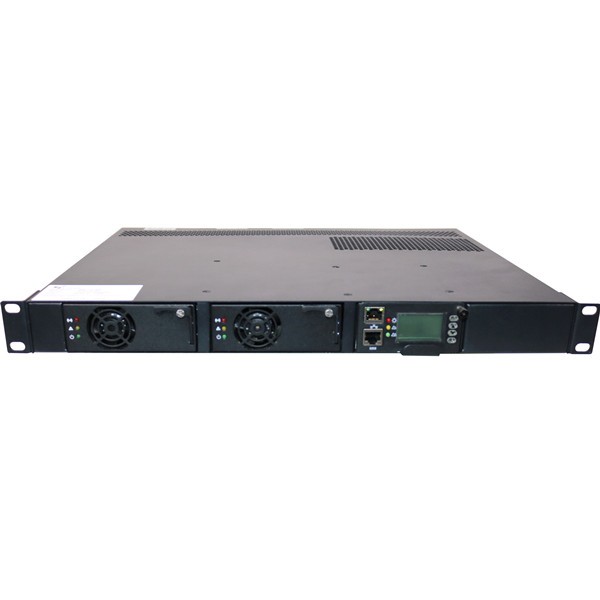

9. SPS100-48 内页.jpg

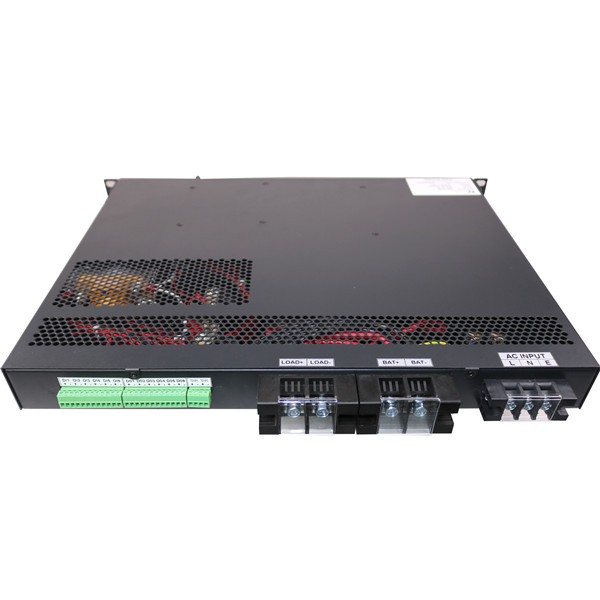

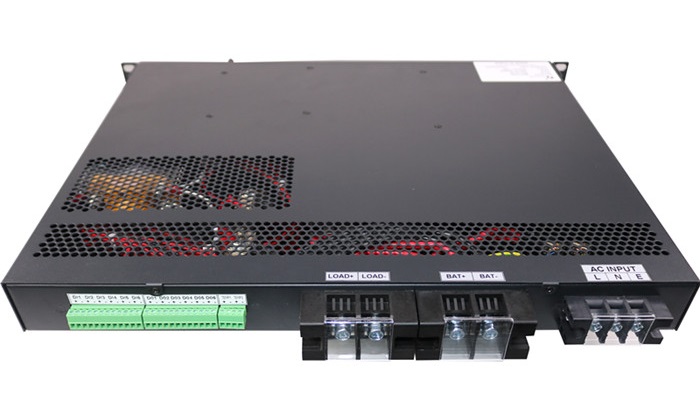

9. SPS100-48  背板 内页.jpg

System model: SPS100-48

System capacity: 48V/60A (6000W)

System input voltage: 90~300VAC, 1phase/3wire

System output voltage: 48VDC

System sizes: 482*330*44mm

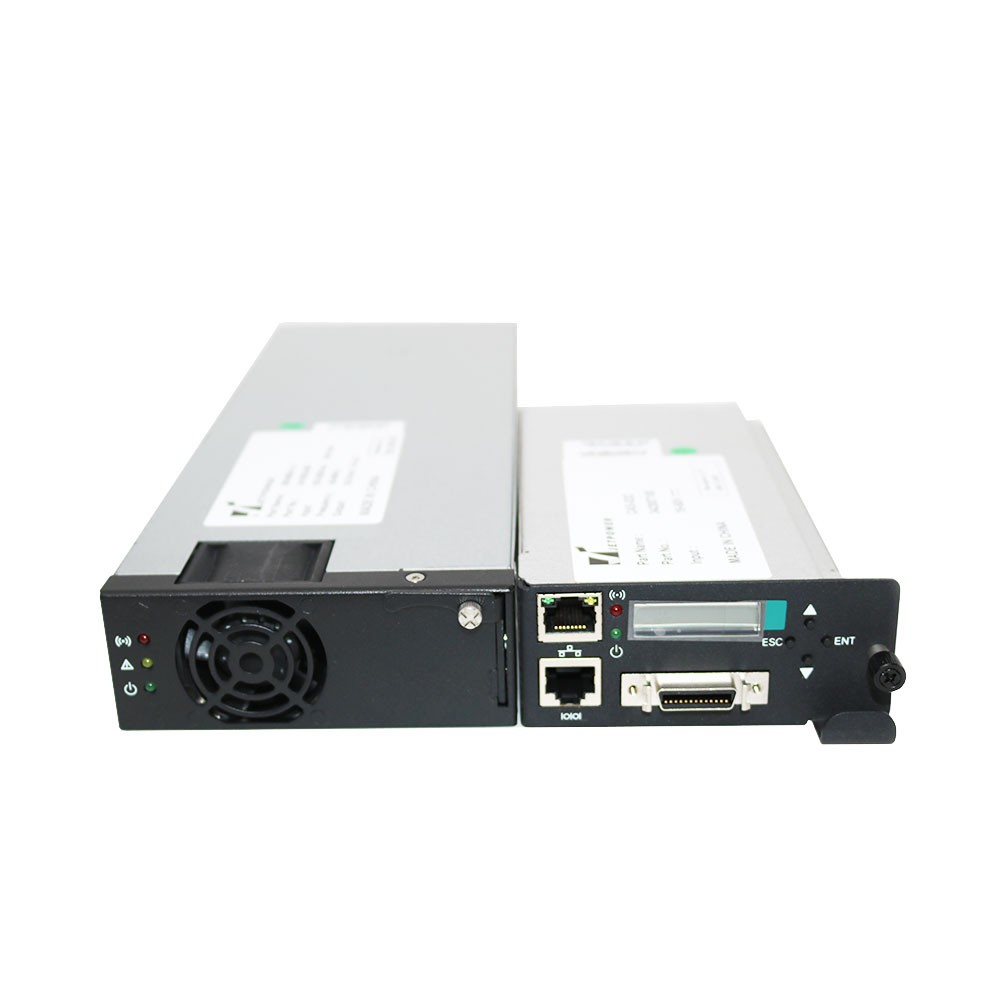

Rectifier module:  90-300VAC single phase input, 48VDC output, 50A/3000W, efficiency: 92% (or 95% , 96% optional), hot-swap

Controller module: LAN, RS232/RS485, External Dry contact(optional), LCDbattery management, alarm; hot-swap


AC input:
 63A/2P*1single phase

DC distribution: 1* 100A load

Battery breaker: 1*60A

Rectifier module qty: 2pcs


Function Features :

(1)19" 1U, sub-rack, easy to be embedded into all standard kinds of telecom equipment.

(2)PFC technique features the system high efficiency, energy-saving and up to 0.99 power factor.

(3)Intelligent fan-cooling technique brings good cooling performance, low failure rate and high  reliability.

(4)Fast on-line expansion of rectifier modules enabled by hot-swap.

(5)N+1 rectifier module redundancy.
