Phoenix series 200 / 20 modular Online UPS

Phoenix series 200 / 20 modular Online UPS

Phoenix series 200 / 20 modular UPS is online ; high frequency ;380V Three phase output ;True sine wave.

High frequency online UPS

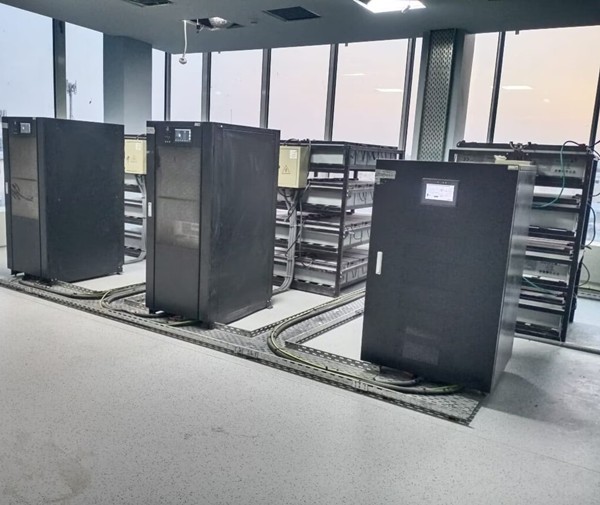

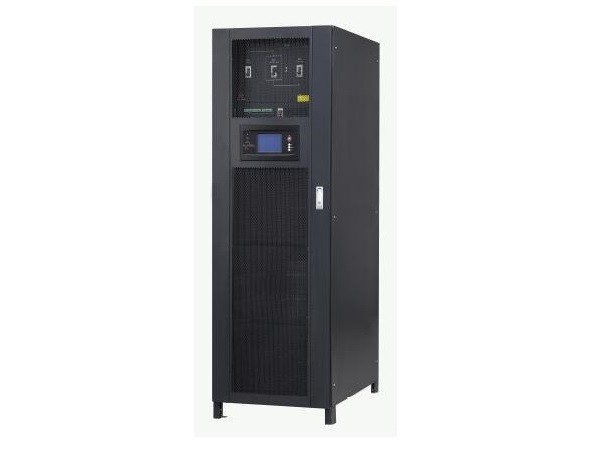

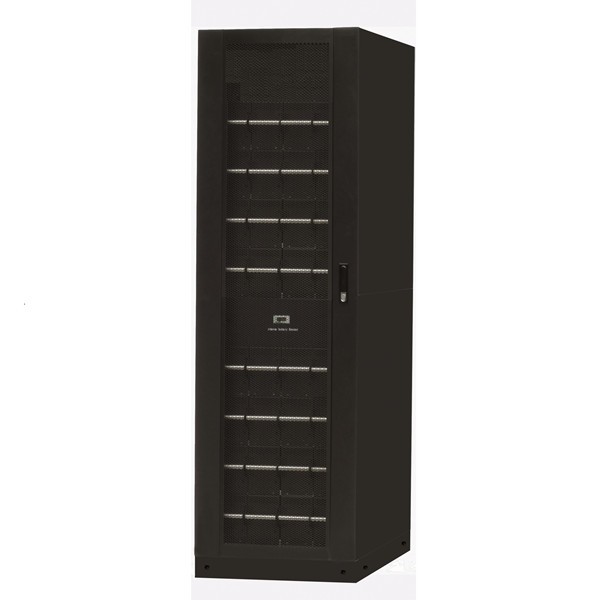

Phoenix 200/20 Series Modular Online UPS

10-400KVA (380V/400V/415V)

6-240KVA (200V/208V/220V)

Phoenix 200 series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 10KVA to 200KVA which delivers the best of combination of reliability, hot-swappable and flexibility.

With the latest IGBT three-level technology and DSP control, Phoenix 200 achieves a high input power factor, low THDi and high system efficiency, which makes it a great choice for data centers, computer system and critical equipment.

Features：

-Modular design with N+X redundancy and online hot swapping ,easy to expand the capacity

-Full DSP control of high stability, reliability and safety

-Integrated IGBT module with improved performance and reduced size

-Excellent input performances for complete compatibility with input PF of 99% and wide range of voltage

-Self-Aging mode for full load test with less than 10% of the total power capacity needed

-Smart charging management system, intelligently control the whole process of the charging and discharging，effectively improve the life time of the battery

-Independent charger for batteries, intelligent battery management system

-Battery cold start, UPS can be powered on from the battery without utility.

-Totally front access, top and bottom cable connection

-Friendly human machine interface with touch screen

Datasheet:

MODEL		PX 200/20 PX 150/15 PX 100/10	PX 120/20 PX 090/15 PX 060/10	PX 060/20 PX 045/15 PX 030/10		PX L120/12 PX L100/10 PX L060/06		PX L072/12 RML060/10 RML036/06	PX L036/12 PX L030/10 PX L018/06
Capacity		10-400KVA				6-240KVA
Power Module Type		PM20/PM15/PM10				PML12/PML10/PML06
NPUT
Phase		3 Phases + Neutral + Ground
Voltage		380V/400V/415V(line to line)				200V/208V/220V(line to line)
Frequency		50/60Hz
Power Factor		>0.99
THDi		THDi<3% @100% linear load
Voltage Range		-20%～25%				-20%～25%
Frequency Range		40Hz～70Hz
OUTPUT
Voltage		380V/400V/415V				200V/208V/220V
Voltage Regulation		±1%(Balance load); ±1.5%(Unbalance load)
THDu		THD<1.5%(linear load ),THD<6%(None linear load)
Power Factor		0.8
Crest Ratio		3:1
Overload Capability		110% for 1 hour; 125% for 10 minutes ;150% for1 minute; >150% for 200ms
BATTERY
Voltage		±240VDC				±120VDC
Charge Power		20%*System Power
Charge Power Precision		±1%
SYSTEM
System Efficiency		Normal mode:95%; ECO mode:98%; Battery mode:95%					Normal mode:92%; ECO mode:98%; Battery mode:90%
Display		LCD+LED, Touch Screen +Keyboard
IP Class		IP20
Interface(Communication Port)		RS232,RS485,Dry contacts, SNMP card, EPO
Operation/Storage Temperature		0～40℃/-40～70℃
Relative humidity		0～95%(non-condensing)
Noise		55dB(1 meter away)
PHYSICAL
Weight	Cabinet	10-Slot cabinet:182Kg; 6- Slot cabinet:151Kg; 3-Slot cabinet:120Kg;
	Power Module	PM20:22Kg; PM15:21Kg; PM10:20Kg				PML12:22Kg; PML10:21Kg; PML06:20Kg
Dimension (WDH)(mm)	Cabinet	10-Slot cabinet: 6009002000; 6-Slot cabinet: 6009001600; 3-Slot cabinet:6009001100
	Power Module	PM20/PM15/PM10:440590134			PML12/PML10/PML06:440590134
