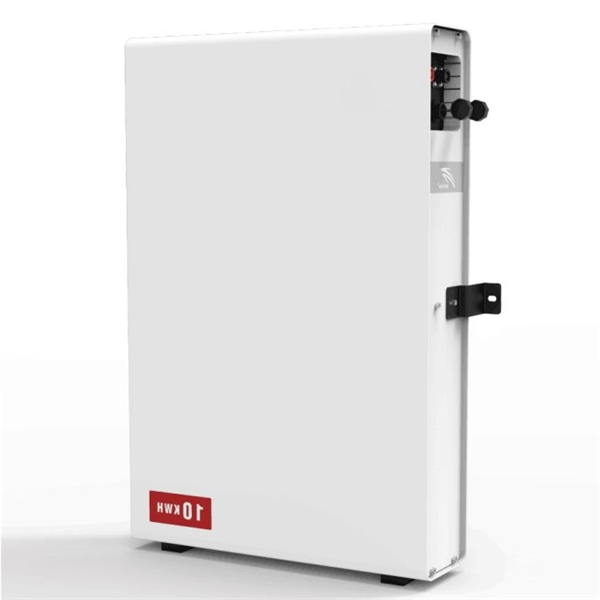

10KWH RESIDENTIAL ENERGY STORAGE

RESIDENTIAL ENERGY STORAGE
Low Voltage-10KWH
51.2V/200Ah

RESIDENTIAL ENERGY STORAGE

Low Voltage-10KWH

51.2V/200Ah

Long life prismatic LFP cell, safety and long cycle life. 200A current for 8KW inverter. IP65 waterproof design for outdoor installation. Install against the wall or wall mounted.

Function Features

SAFETY

-Long life type prismatic LiFePO4 cells, suitable for energy storage application.

-Low voltage system, safety for application.

-Cell certification: UN38.3, ROHS, IEC62619, UL1973 and UL9540A

-Battery certification: UN38.3, MSDS, CE

SCALABILITY

-Parallel support for more energy

-Max. 200A larger current

-Communication compatible with major inverter (SMA, Victron, Megarevo, Growatt,DEYE, Voltronic, Afore, Phocos, EPEVER,MUST, INHENERGY).

DESIGN

-IP65 water-proof design, suitable for outdoor application.

-Flexible and easily installation, support wall mounted.

--20~+55°C widely temperature range

-Maintenance free

-Cycle life >6000 cycles

BATTERY MANAGEMENT SYSTEM

-Independent protection for charge and discharge.

-SOC, RUN, ALARM display and PC software for detailed operation.

-OVP, LVP, OCP, OTP, LTP protection.

-RS485,CAN communication port for inverter

Datasheet:

Model name	JETPOWER-10KWH-51.2V
Nominal Voltage [V]	51.2
Nominal Capacity [Ah]	200
Total Energy [Wh]	10.24
Dimension (WDH, mm)	560150866
Weight [Kg]	113.5
Max. Charging Current [A]	100
Max. Discharging Current [A]	200
Pulse Discharge Current	220A @60S 240A @10S
Charging Voltage [V]	55.2~57.6
End of Dicharge Voltage [V]	44.8 (Backup Application) / 48 (Cycle Application)
Operation Humidity	0~95% RH (No condensing)
Operating Temperature Range	Standard Product: Charge: 0 ~ +55°C; Discharge: -20 ~ +55°C With Optional Heater: Charge / Discharge: -30 ~ +55°C
Cycle Life (1)	>6000
Designed Calendar Life	10 Years
Communication interface	RS485, CAN
Protection	Over voltage , Low voltage, Over current, Over Temperature, Low Temperature, Short circuit.
Parallel Support (2)	Yes, Max. 6 Sets
Series Support	Not support
Optional Part	Bluetooth Module, Heater parts (400W), Distribution box (for parallel connection)

Note:

(1) 25°C ,0.5C/0.5C, 90%DOD and 70% EOL

(2) For parallel connection, an additional combiner box is recommended

Details：

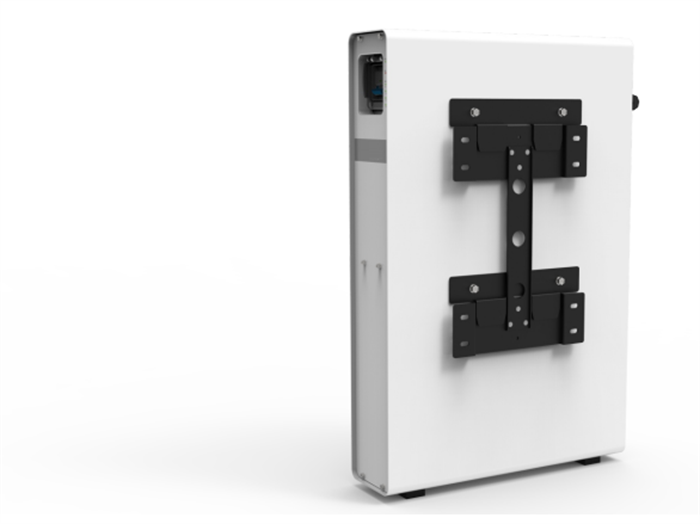

Wall mounted brackets

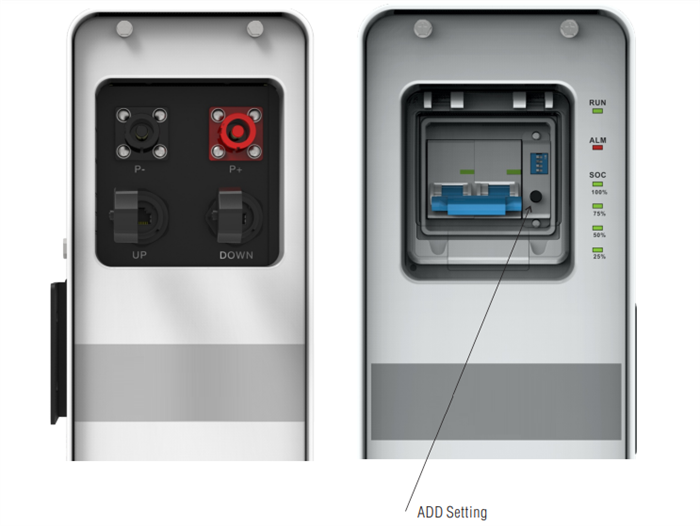

Power connector

Communication Port

LED display for SOC, Alarm and Failure

Distribution box for parallel
