48V / 120A Rectifier System

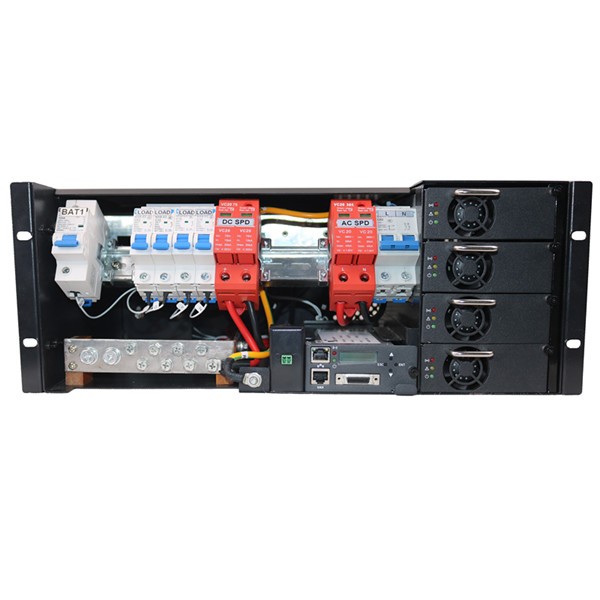

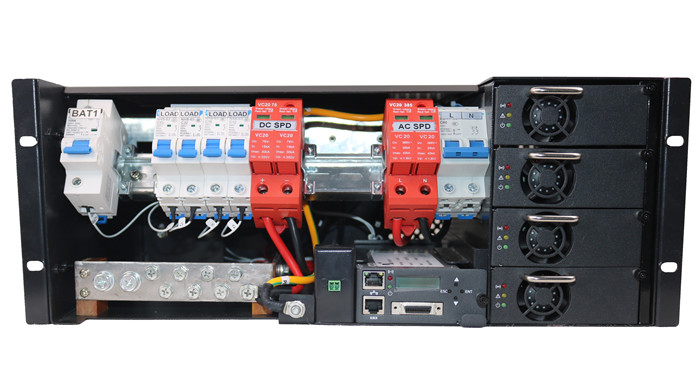

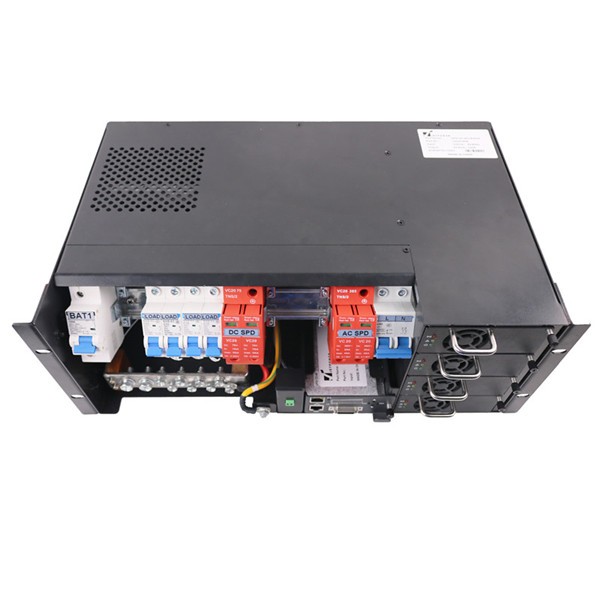

48V/120A rectifier system (4U rack)

System model: SPS120-48

System capacity: 48V/120A (7200W)

System input voltage: 90~300VAC, 1phase/3wire

System output voltage: 48VDC

System sizes: 482*330*176mm

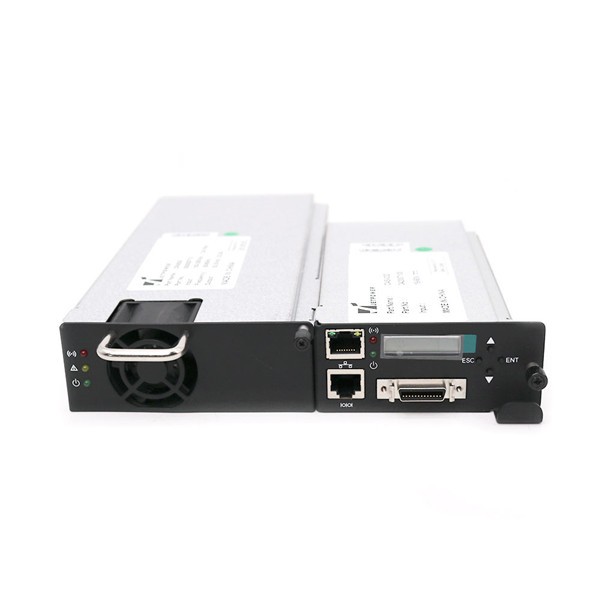

Rectifier module: 90-300VAC single phase input, 48VDC output, 30A/1800W, efficiency: 92% (or 95% , 96% optional), hot-swap

Controller module: LAN, RS232/RS485, Dry contact, LCD，battery management, alarm; hot-swap

AC input: 1pcs*63A/2P, 1phase/3wire, Class C SPD

DC distribution: 7*6-63A/1p; DC SPD.

　　　　　　　　(customizable)

Battery breaker: 1pcs * 125A/1P

Rectifier module: 4pcs

Optional: secondary LVD, DC lightning protection

Features：

(1)19" 4U, sub-rack, easy to be embedded into all standard kinds of telecom equipment.

(2)Upper wire connection.

(3)PFC technique features the system high efficiency, energy-saving and up to 0.99 power factor.

(4)Intelligent fan-cooling technique brings good cooling performance, low failure rate and high  reliability.

(5)Fast on-line expansion of rectifier modules enabled by hot-swap.

(6)N+1 rectifier module redundancy.
