Panda series Line-interactive UPS (1.1~2KVA, 2U)

Panda series Line-interactive UPS (1.1~2KVA, 2U)

Seagull series Line-interactive 1100VA, 1500VA, 2000VA, UPS is step sine wave output, 2U rack mount and tower convertible

Panda series Line-interactive UPS (1.1~2KVA, 2U)

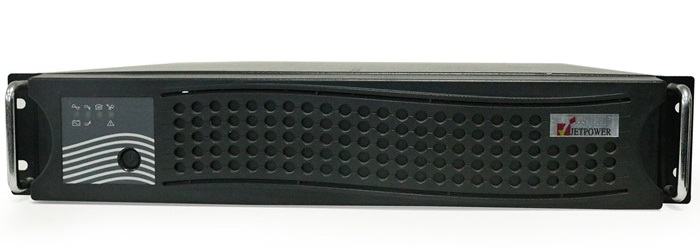

Panda UPS (1内页图.JPG

Panda Series use line-interactive technology to fully protect your personal computers, workstation and small servers even in

harsh power environments. With built-in Boost and Buck function, the PSRT series can operate under a wide AC input voltage

while keeping steady output voltage. The wide AC input voltage avoids frequent transfers to battery mode, preserve maximum

backup time for extreme power events and also increase battery life time.

The USB connectivity with power monitoring and management software provides useful power management functions such as

event logging and unattended file saving shutdown.

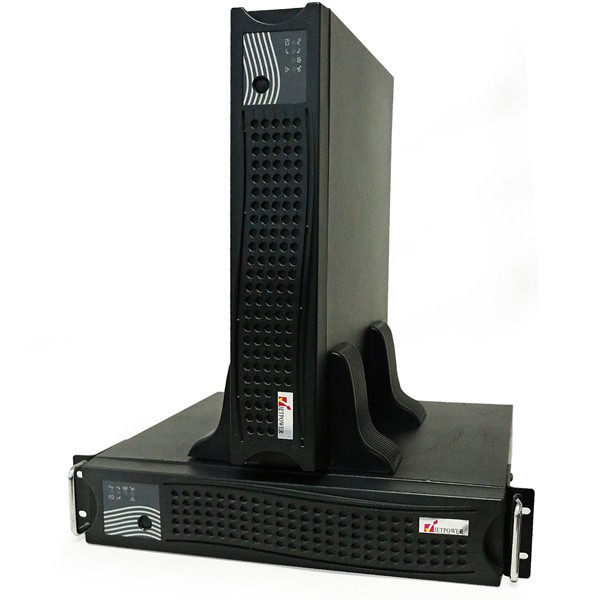

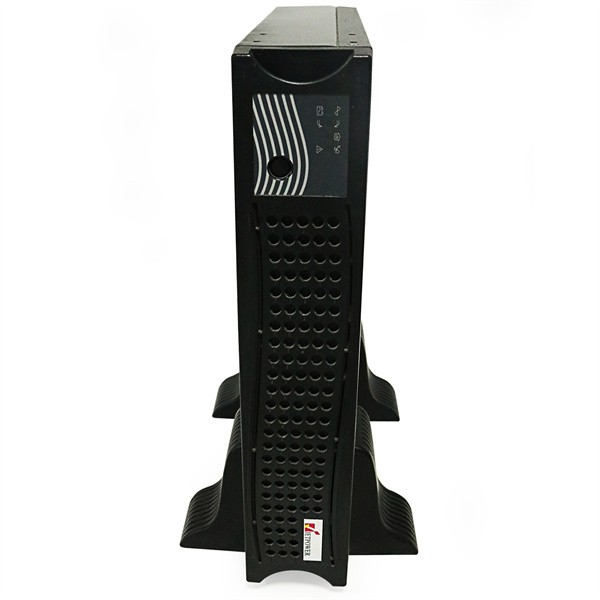

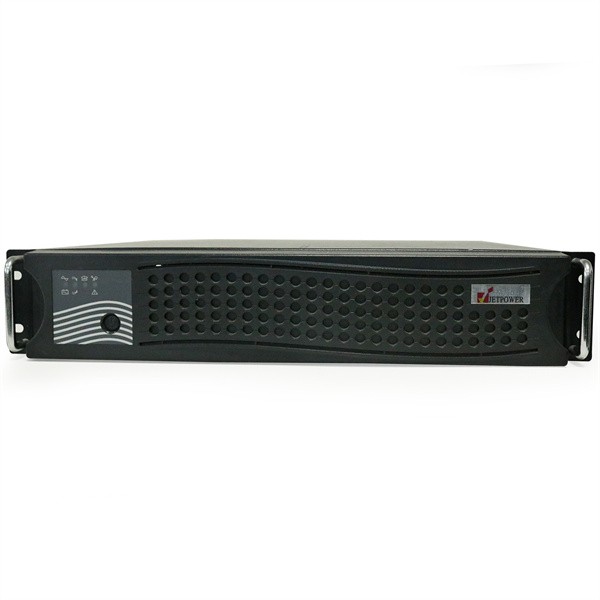

With the unique mechanical design in a 2U rack/tower convertible, users can support standalone equipment or loaded equipment

racks to save space. This flexible form factor allows standardization across multiple applications. It’s the smart solution for home

and office application.

Features：

l Line-interactive, step sine wave output

l DC cold startup function

l Boost and trim automatic voltage regulation (AVR)

Gives higher application availability for correcting low and high voltage conditions without using battery

l Generator compatible

l Dataline surge protection

Provides protection of connected equipment from power surges on the data lines

l LED status indicators

Enables quick understanding and response to visual indicators showing UPS status

l Safety agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. CE approval and FCC class B

l USB and RS-232 connectivity

Provides management of the UPS via USB or RS-232

l Rack/Tower adaptability

Datasheet

Model		1100VA	1500VA		2000VA
Capacity (W)		715W	975W		1300W
Input	Nominal voltage	115/230VAC
	Voltage range	+/-25%
	Frequency	50/60Hz +/- 6Hz (automatic sense)
Output	Nominal voltage	115/230VAC
	Voltage regulation	+10% ~ -13% (AC mode); +/-8% (battery mode)
	Frequency regulation	50/60HZ ±0.5%
	Overload	105 +/-10% alarm; 140+/-10% for 2mintues then UPS shutdown (AC mode); 105 +/-10% for 20seconds then UPS shutdown; 140+/-10% UPS immediately shutdown (Battery mode);
Waveform		Step sine wave
Transfer Time(ms)		≤10ms
Battery	Type	VRLA
	Voltage	24Vdc
	Backup time	10~25 minutes (depends on load)
	Recharge time	6hrs recharge to 90%
Data line surge suppression		1482 Joules (115V type); 476 Joules (230V type)
TEL/FAX surge suppression	Joules	114 Joules
	Type	RJ11 (one pair), 2C
Networking Surge	Performance	Up to 100Base-T
	Type	RJ45 (one pair), 2C
Status LEDs		Line Normal, Battery Backup, Boost, Buck, Battery Replacement, Fault, Overload, Load capacity/Battery capacity
Audible alarm		Battery backup, battery backup over 30minutes, battery low, overload, fault
Communication Interface		USB, RS-232
Ambient	Temperature	0 ~ 40℃
	Humidity	10~95%, no condensation
	Altitude	3000m
Safety & EMC		CE, TUV, FCC
Physical	SIZE(W×D×H, mm)	415 * 430 * 89
	Weight (kg) (w batt.)	20.4kg		26kg		30kg
