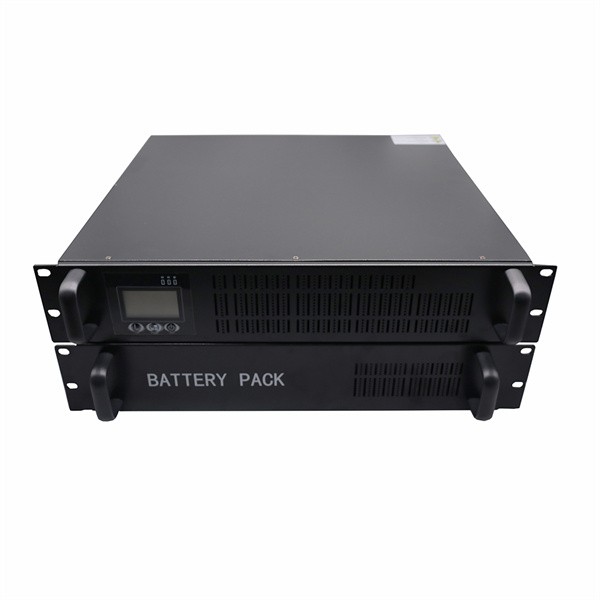

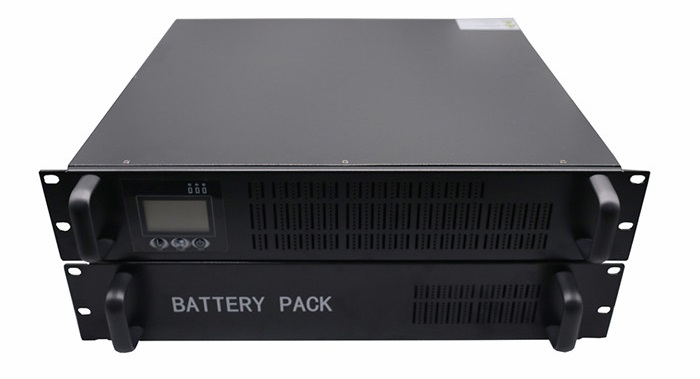

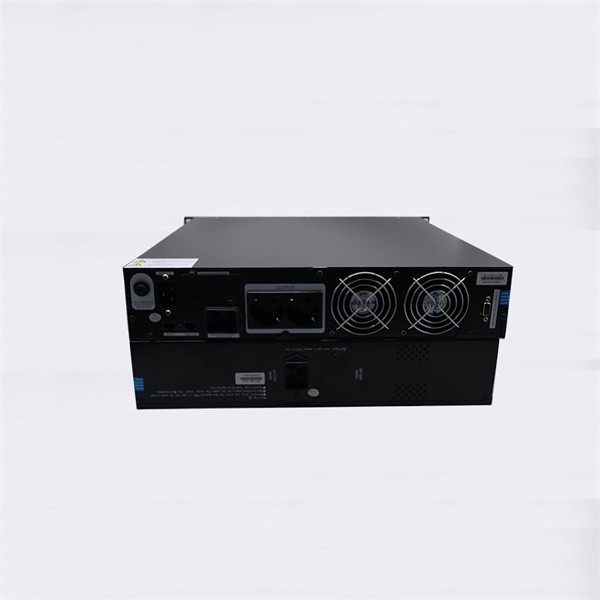

Dragon High Frequency Online UPS (1~10KVA)

Dragon High Frequency Online UPS (1~10KVA)

  Dragon series use advanced PWM technology with double conversion technology to protect your data by supplying reliable power and scalable

runtim. Double conversion and advanced AC line filtering assures your equipment well protected. Scalable runtime provides worry free for long blackout.

With disturbances such as power sags, surges, spikes, switching transients, brownouts or complete power failure, the potential is high for data damage

or loss, file corruption and hardware deterioration, which is not always immediately detected. The PP series can provide protection from such problems.

The PP series can provide protection from such problems. Included with each UPS is UPSilon2000 power management software provides user with

useful management functions such as power event logging, remote monitor and unattended file saving when blackout.

Typical applications include critical application servers and storage, IP and PBX based voice networks, enterprise network switches and hubs.

Features：

l High performance systems

      -On-line double conversion

      -True sine wave output

      -Microprocessor control

      - Internet ready-phone/fax/modem/DSL data line surge suppression

       l Comprehensive protection

      -Lightning and surge protection

       -EMI/RFI filter protection

       -Input Over voltage protection

       -Output short circuit protection

       -Overload protection

        l  User friendly operation

        -LED and LCD display

        -System self-diagnostics

        l Remote Operation

        -RS-232 interface

        -Power management software (UPSilon 2000 CD included)

        -Support Microsoft win98/2000/NT/XP, Linux and more

        l Optional function

       -Scalable runtime with external battery bank

        -Smart slot interface

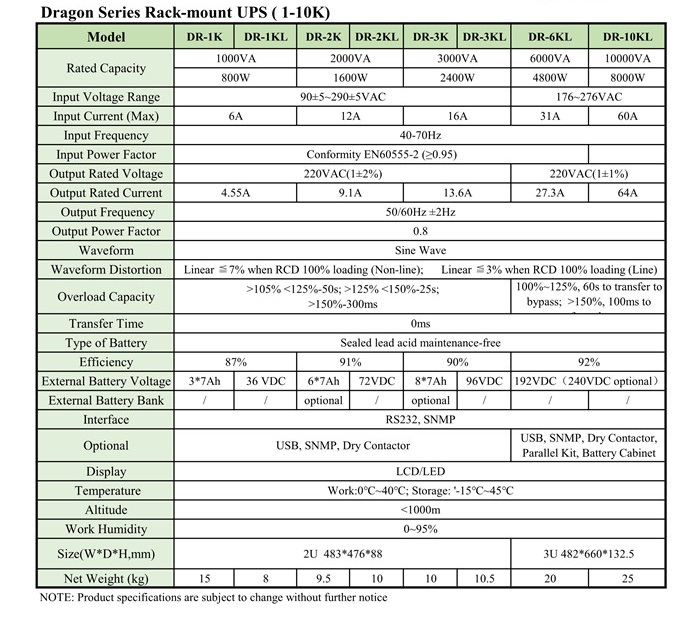

Datasheet

Research and development

Powtech is one of leading manfuacturer of AC/DC switching power supply (recitfier system), DC/AC power inverter, AC/AC UPS (Uninterrupted Power Supply) in China. Since our establishment in 1994, we are dedicated to serve our partner with whole solution of power system, professional technical solution , quality product, FAT test, factory product training, on-site training and many value-added services. we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold world widely, including Europe, South America, Africa, Middle East, Asia .

Workshop&Inspection

After more than 20 years' development, we are certified by ISO, SGS, FCC, CE, RoHS, and by customer-appointed lab test authorities etc. With the belief that there is no customer too big or too small, every customer deserves better service. POWTECH people anticipate growing and prospering with you, embarking on a way of success.

Our customers
