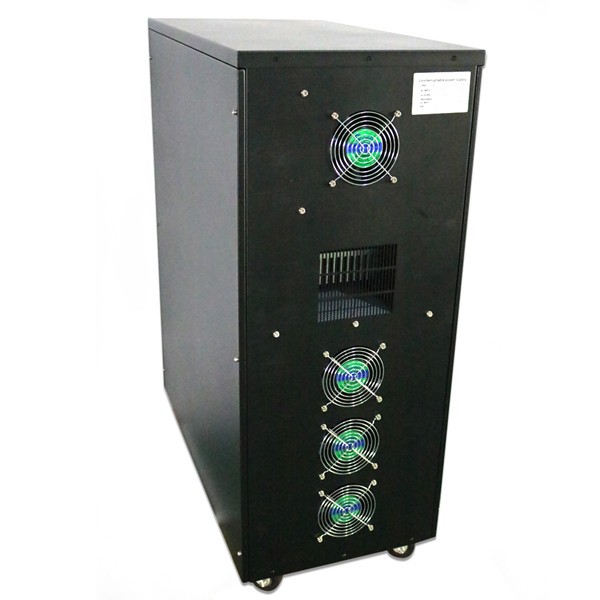

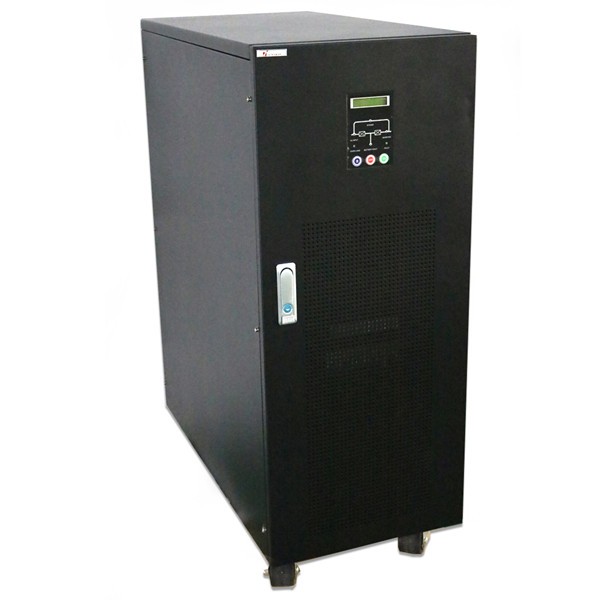

QZ Series15KVA / 12KW Low Frequency Single Phase Online UPS

QZ Series15KVA / 12KW Low Frequency Single Phase Online UPS

QZ series use the advanced PWM and IGBT inverted technology, capable of precisely controlling all kinds of operation parameters of the UPS, therefore they can provide a high quality and reliable AC power source for your precise equipments. With their unique AVR design that expands the input range, the QZ series are very suitable for harsh environment, reduce battery charge/discharge times, thus extend battery life. Besides, the long backup UPS with large built-in charger (10A) can rapidly recharge external battery so as to provide perfect protection for long blackout.

QZ series utilize microprocessor control to replace traditional analog or digital components in its control board. The design not only increases the MTBF but also provides a precise and reliable output. With proven field experience all over the world, the QZ series provide an optimum choice for complete protection solution from micro computers to large scaled computers, from communication systems to industrial automatic control equipments.

Main Features：

High Reliable

-Adopt on-line double conversion technology

-IGBT, PWM inverter together with digital

-Design with 100% unbalance protection

-100% Non linear load ability

-Microprocessor controller

-AVR design, expanded input voltage range (160vac ~ 300vac)

-Key components with redundant design for higher reliability

Comprehensive protection

-Lightning and surge protection

-EMI/RFI filter protection

-Input Over voltage protection

-Output short circuit protection

-Overload protection (150% for 3s)

-Over temperature protection

Super Safety

-The output isolate transformer can avoid the destruction of abnormal signal & lightning stoke

-With static bypass, repair bypass, battery maintain bypass

-Cold start

Application:

Data management equipment and system, Automatic control system, Hospital, Mini Office System, Telecommunication System, Bank

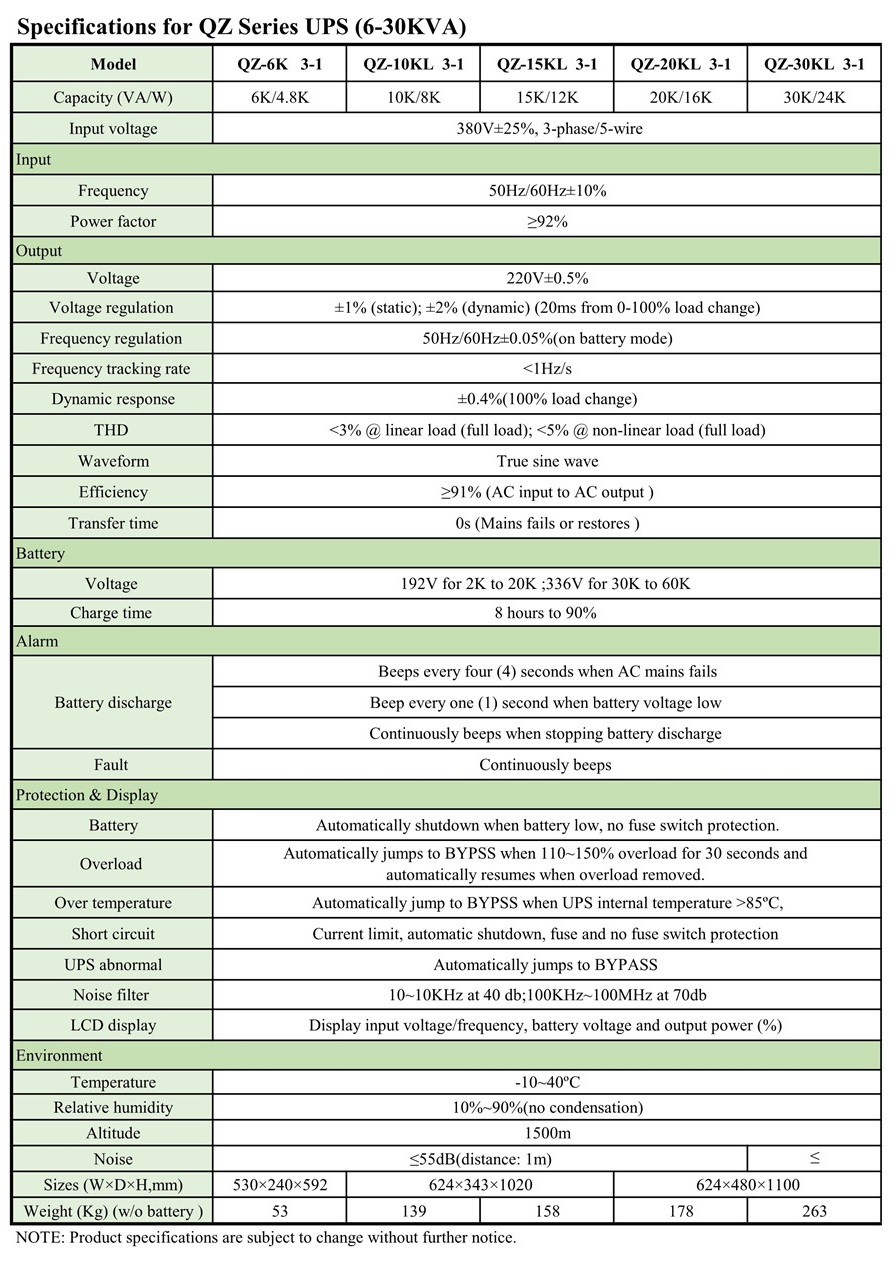

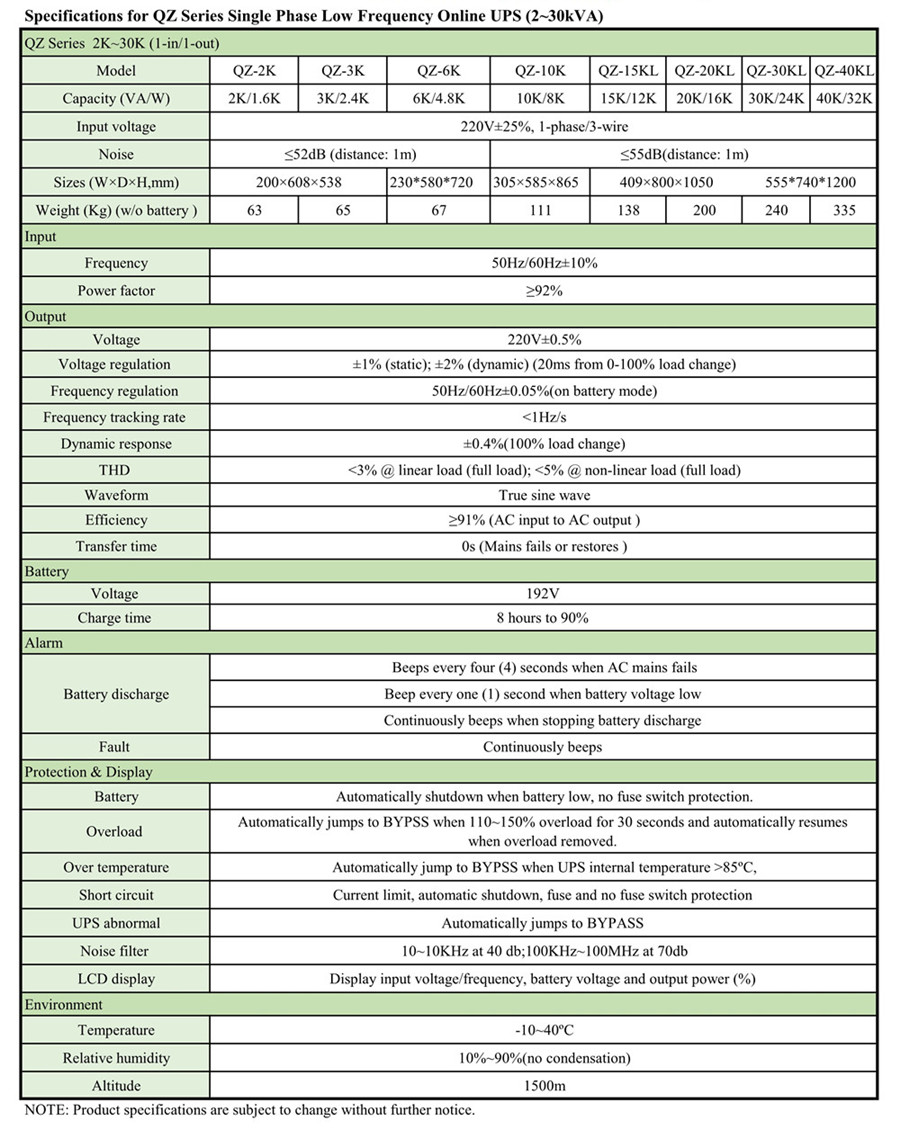

Datasheet：

Research and development

Powtech is one of leading manfuacturer of AC/DC switching power supply (recitfier system), DC/AC power inverter, AC/AC UPS (Uninterrupted Power Supply) in China. Since our establishment in 1994, we are dedicated to serve our partner with whole solution of power system, professional technical solution , quality product, FAT test, factory product training, on-site training and many value-added services. we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold world widely, including Europe, South America, Africa, Middle East, Asia .

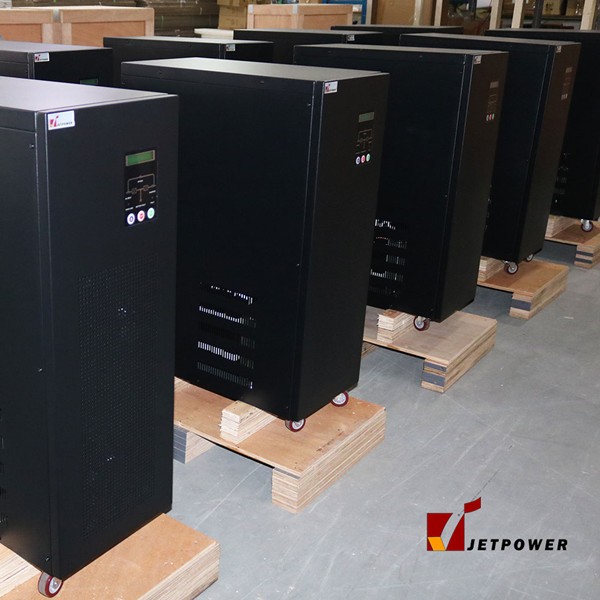

Workshop&Inspection
